Ford F-150 2WD Cast Iron Lift Blocks + Round U-Bolts Leveling Lift Kit

Upgrade your Ford F-150 2WD with our Reaper Offroad Lifts Cast Iron Lift Blocks and Square U-Bolts Kit, providing an affordable leveling solution to lift the back-end of your truck. This kit is designed to clear space for bigger tires and increase rear load and towing capacity. The Cast Iron Lift Blocks are tapered for perfect pinion alignment and are available in your choice of 1.5”, or 2” lift heights. With this kit, you'll receive 4 round steel U-Bolts that provide maximum U-Bolt clamp force to eliminate flexing and maintain original vehicle handling.

Allowances need to be made for all overloads and aftermarket leafs. The 10-inch U-Bolts can be cut down to fit different applications. Included hardware is heat-treated and made of grade 8 material for extra strength and durability.

• FITMENT: 1997-2003 F-150 2WD; Does not fit extended cab trucks
• LIFT: 1.5” and 2”

SPECIFICATIONS:

• Lift Blocks: 5.8” L x 2.5” W, 9/16th pin
• U-Bolts: Round 11” length, 3.25” width, 9/16 thread pitch

DESIGN:

• Lift Blocks: Tapered to absorb noise and vibrations. Cast as a single, more stable construction than blocks with pressed pins.
• U-Bolts: Square bend. Will clamp 2.5” wide leaf springs. U-bolt color may vary.

QUALITY:

• Lift Blocks: Coated heavy-duty cast iron for extra durability and include the right taper to correct pinion angle
• U-Bolts: Made of cold-drawn certified 1541 carbon steel OEM factory material with grade 8 hardware.

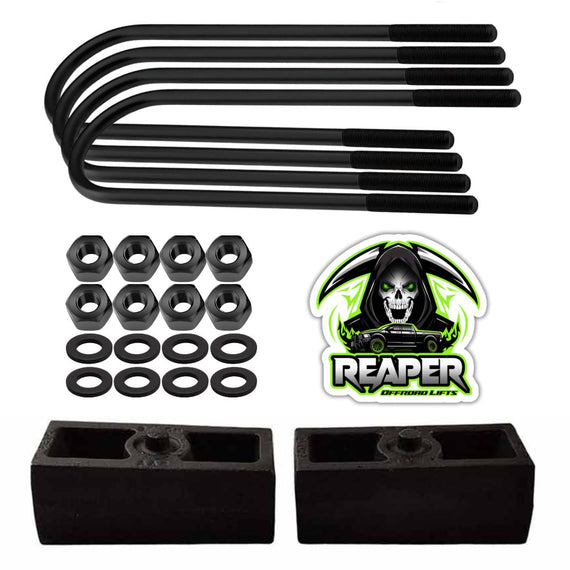

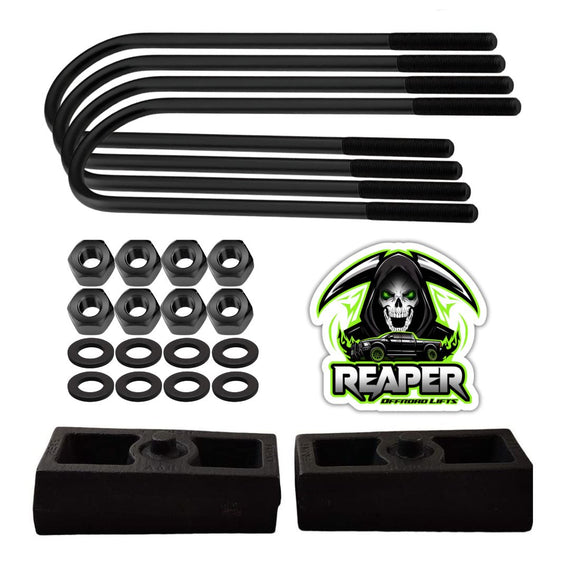

KIT CONTENTS: 2x Solid Cast Iron Lift Blocks, 4x Certified Carbon Steel Leaf Spring Axle Square U-Bolts with Grade 8 Hi-Nuts, Security Spring Washers, & Installation Instructions. [Free car sticker included!]

TECHNICAL NOTES: Install the tallest ends of tapered rear blocks to the rear of the vehicle; Retighten u-bolts after the first 500 miles.

MANUFACTURED: Made in America

WARRANTY: Lifetime Replacement Warranty

California Residents: Prop 65 warning
